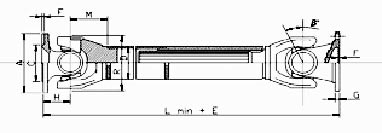

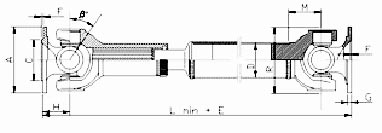

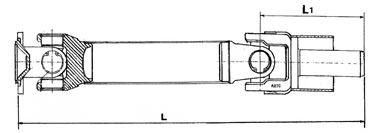

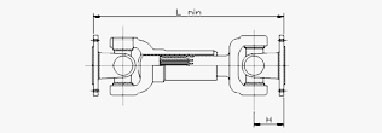

Cardan Shafts
| Mt Max (Nm) |
ARIG Serial # |
Crociere |
Profile |
Elongation (mm) |
External Pipe Ø (mm) |
Flanges Available (see table) |
ß Max |
| 900 |
AC 62 |
23,8x61,3 |
23x27x16 |
50 |
44,5/51 |
A-B-C |
18° |
| 1800 |
AC 768 |
27x74,8 |
31x35x18 |
40 |
51 |
D-E-F |
25° |
| 1800 |
AC 82 |
27x81,7 |
30x35x16 |
50 |
51/74,5 |
G-H-I-L |
22°/35° |
| 2500 |
AC 767 N |
30,2x82 |
33x40x14 |
50 |
61 |
M-N-O-P |
35° |
| 2500 |
AC767WS |
30,2x82 |
33x40x14 |
110 |
61 |
M-N-O-P |
35° |
| 2700 |
AC 92 |
30,2x92 |
35x40x16 |
50 |
74,5 |
Q-R-S |
18°/35° |
| 3200 |
AC 106 |
30,2x106,3 |
35x40x16 |
45/60 |
74,5/89 |
T-U-V |
18°/35° |
| 4600 |
AC116 |
39,7x115,9 |
40x45x16 |
60 |
89 |
X-Y-Z |
20° |
