Flanges

Execution:
Tube With Lenght Compensation

Execution:
Tube With Lenght Compensation

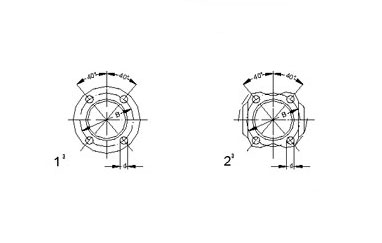

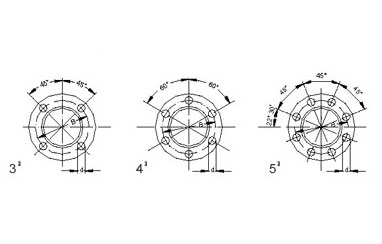

Flanges Table

(all the dimensions are expressed in millimeters)

T x Z	Serie	Fig.	Type	A	B	C	N. holes	d	P	G	H		RIF.	COD.ARIG
23,8 x 61,3	AC 62	1	SAE 1120	-	69.85	57.15	4	8.25	1.4	7	33	18°	A	FL.062.001
		4	DIN	75	62	42	6	6	2	5	42	18°	B	FL.062.010
		3	DIN	90	74.5	47	4	8.25	2.5	6.5	33	18°	C	FL.062.011
27 x 74,8	AC 768	1	SAE 1120	-	69.85	57.15	4	8.25	1.3	9	43	25°	D	FL.768.001
		1	SAE	97	79.37	60.32	4	10.25	1.3	8	43	25°	E	FL.768.002
		3	DIN	90	74.5	47	4	8.5	2.7	9	50	25°	F	FL.768.003
27 x 81,7	AC 82	1	SAE 1120	-	72.30	57	4	8.25	1.4	8	39.5	22°	G	FL.082.001
		1	SAE 1310	-	79.37	60.32	4	10.25	1.4	7	35	18°	G	FL.082.002
		1	SAE 1310	-	79.37	60.32	4	10.25	1.4	11	45.5	22°	G	FL.082.003
		1	SAE 1310	-	79.37	60.32	4	10.25	1.4	8	58	35°	G	FL.082.004
		1	SAE 1410	-	95.30	69.85	4	12.25	1.4	8	50.5	22°	G	FL.082.005
		3	DIN	90	74.5	47	4	8.5	2.5	7	40	18°	H	FL.082.005
		4	DIN	100	84	57	6	8.5	2.5	8	60	35°	I	FL.082.013
		5	DIN	120	101.5	75	8	10.5	2.5	8.5	51	25°	L	FL.082.016
30,2 x 82N/ WS	AC 767	1	SAE 1310	-	79.37	60.32	4	10.25	1.6	8	58	35°	M	FL.767.001
		1	SAE	120	95.25	69.85	4	12.25	1.3	8	58	35°	N	FL.767.002
		4	DIN	100	84	57	6	8.5	3.2	8	58	35°	O	FL.767.003
		5	DIN	120	101.5	75	8	10.5	3	8	58	35°	P	FL.767.004
30,2 x 92	AC 92	2	SAE 1410	-	95.27	69.85	4	12.25	1.4	8.5	44	18°	Q	FL.092.002
		4	DIN	100	84	57	6	8.5	2.5	8	58	33°	R	FL.092.010
		5	DIN	120	101.5	75	8	10.5	2.5	8	59	35°	S	FL.092.012
30,2 x 106,3	AC 106	2	SAE 1410	-	95.27	69.85	4	12.25	1.4	7.5	43	18°	T	FL.106.001
		4	DIN	100	84	57	6	8.5	2.5	8	68	25°	U	FL.106.010
		5	DIN	120	101.5	75	8	10.5	2.5	8	69	25°	V	FL.106.014
39,7 x 115,9	AC 116	1	SAE 1510	-	12O,67	95.25	4	14.25	2	12.5	62.5	20°	X	FL.116.002
		5	DIN	120	101.5	75	8	10.5	3	10	72.5	25°	Y	FL.116.010
		5	DIN	150	130	90	8	12.5	3	11	79	25°	Z	FL.116.012
