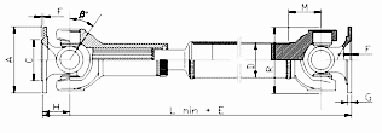

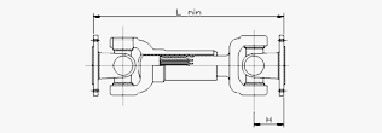

Alberi cardanici
|
Mt Max (Nm) |
ARIG Serial # |
Crociere |
Profilo |
Allungamento (mm) |
Tubo esterno Ø (mm) |
Flange disponibili (guarda tabella) |
ß Max |
|---|---|---|---|---|---|---|---|
| 900 | AC 62 | 23,8x61,3 | 23x27x16 | 50 | 44,5/51 | A-B-C | 18° |
| 1800 | AC 768 | 27x74,8 | 31x35x18 | 40 | 51 | D-E-F | 25° |
| 1800 | AC 82 | 27x81,7 | 30x35x16 | 50 | 51/74,5 | G-H-I-L | 22°/35° |
| 2500 | AC 767 N | 30,2x82 | 33x40x14 | 50 | 61 | M-N-O-P | 35° |

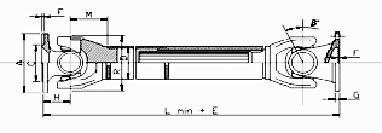

| 2500 | AC767WS | 30,2x82 | 33x40x14 | 110 | 61 | M-N-O-P | 35° |
| 2700 | AC 92 | 30,2x92 | 35x40x16 | 50 | 74,5 | Q-R-S | 18°/35° |
| 3200 | AC 106 | 30,2x106,3 | 35x40x16 | 45/60 | 74,5/89 | T-U-V | 18°/35° |
| 4600 | AC116 | 39,7x115,9 | 40x45x16 | 60 | 89 | X-Y-Z | 20° |
